Industrial RJ45 Ethernet Connector | Crimp-free Cat6A Cat6 Plug

Name: Industrial RJ45 Ethernet Connector | Crimp-free Cat6A Cat6 Plug
Brand: Connettore STA
SKU: Industrial RJ45
Availability: InStock
Rating: 5 (1 reviews)

No.Industrial RJ45

The RJ45 Series Industrial Connector by Shenzhen Sta Electronic is engineered for high-speed Ethernet deployments in controlled industrial environments. Featuring a crimp-free piercing design, this connector supports Cat5e, Cat6, and Cat6A standards with ease. Available in Red/Yellow identification, it utilizes a shielded metal or PA66 shell to ensure 500+ mating cycles for secure, high-bandwidth Profinet and Wlan networks.

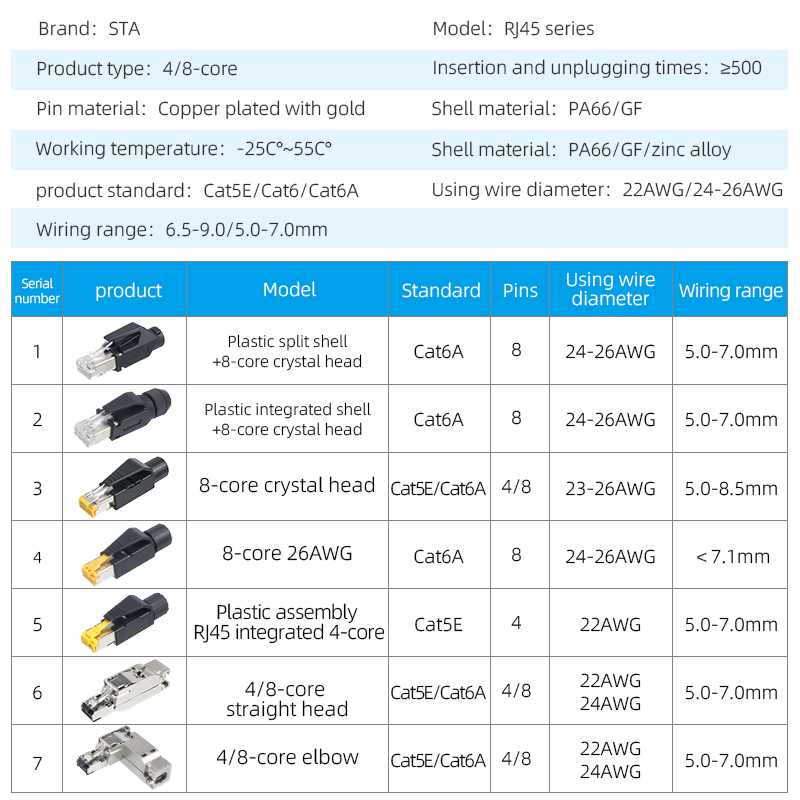

Connector Type

RJ45 Series (Industrial Ethernet)

Standard Compliance

Cat5e / Cat6 / Cat6A

Pin Configuration

4-Core / 8-Core (4 / 8 Pins)

Contact Material

Copper Plated with Gold

Compatible Wire Gauge

22AWG / 24-26AWG

Cable O.D. Range

6.5 - 9.0mm / 5.0 - 7.0mm

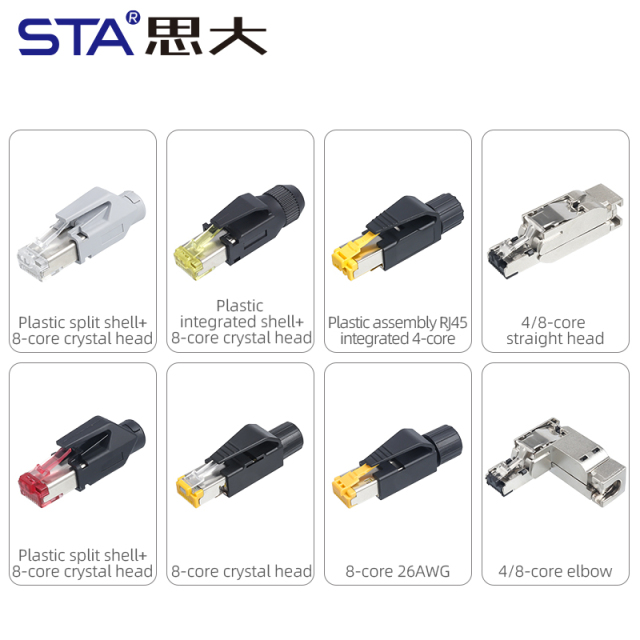

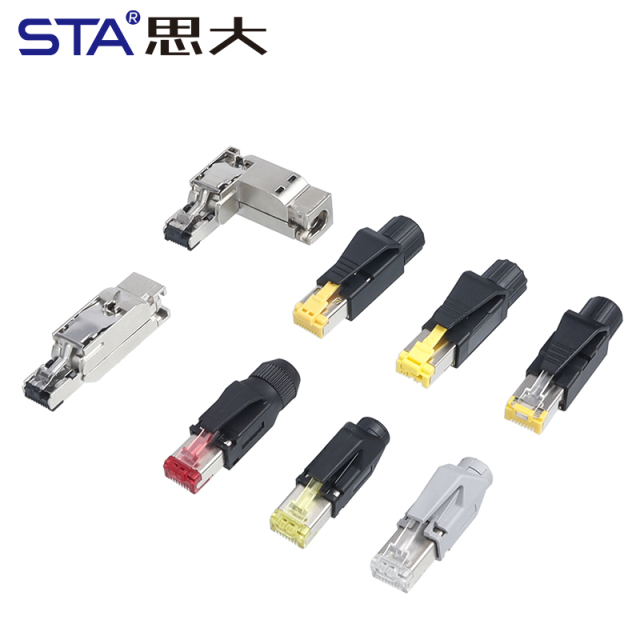

Connector Type:

Metal RJ45 4core Straight Head(No need for network cable pliers)

Metal RJ45 8core Straight Head(No need for network cable pliers)

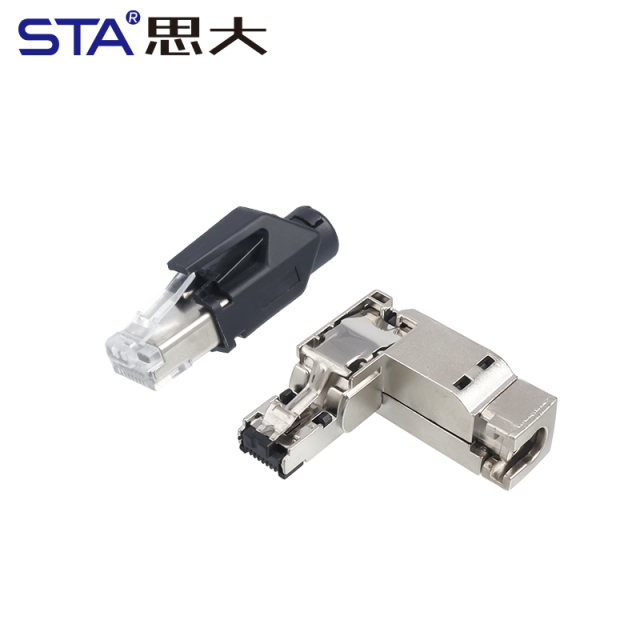

Metal RJ45 4core Elbow(No need for network cable pliers)

Metal RJ45 8core Elbow(No need for network cable pliers)

8core Anti-vibration Crystal Head STA-901-8P

8core Crystal Head(No need for network cable pliers)

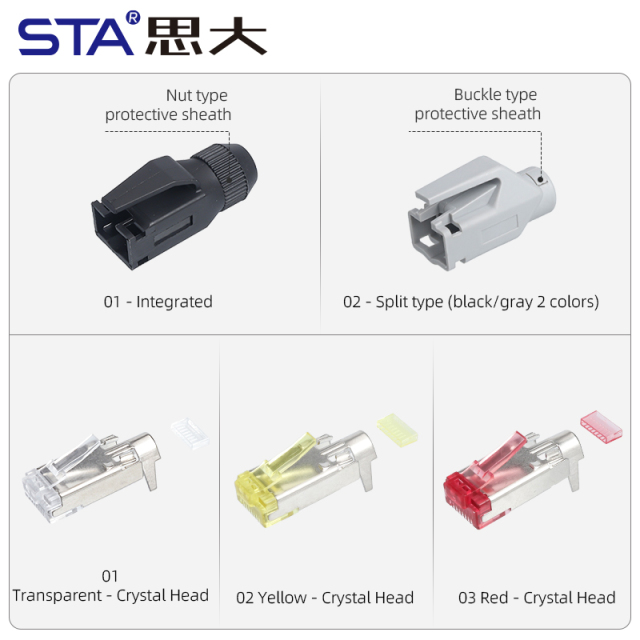

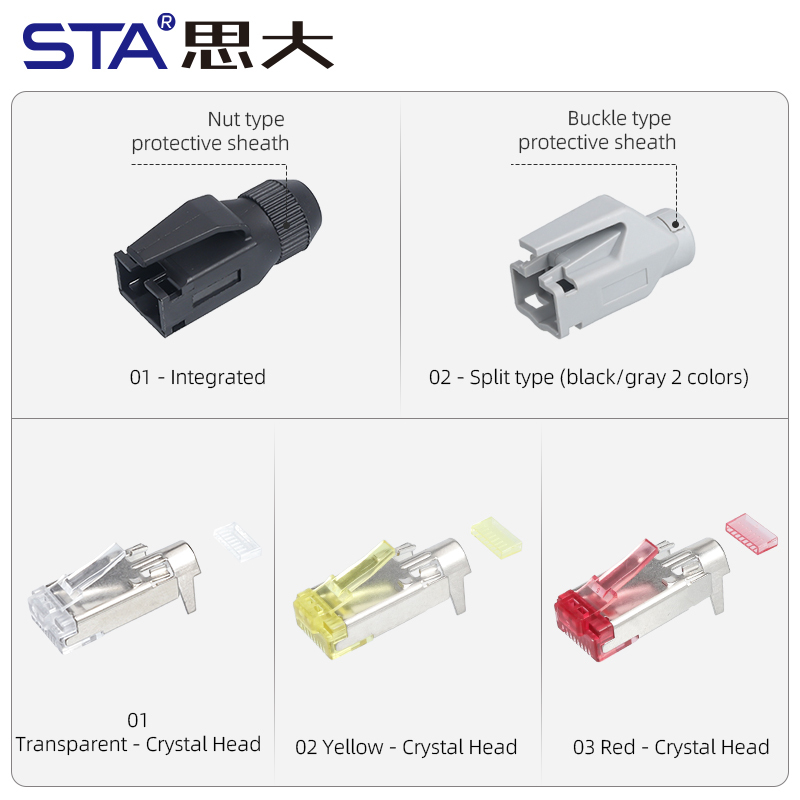

Plastic black split shell+8core transparent crystal head

Plastic black split shell+8core red crystal head

Plastic black split shell+8core yellow crystal head

Plastic gray split shell+ 8-core transparent crystal head

Plastic gray split shell+8-core red crystal head

Plastic gray split shell+8-core yellow crystal head

Plastic integrated shell+8-core transparent crystal head

Plastic integrated shell+8-core red crystal head

Plastic integrated shell+8-core yellow crystal head

Plastic Assembly RJ45 4core(No need network cable pliers)

RICHIEDI UN PREVENTIVO

Descrizione

Key Advantages

Tool-less Crimp-free Assembly: Our crimp-free RJ45 connector features advanced piercing technology, allowing for rapid field termination without specialized crimping tools, significantly reducing installation time and labor costs.
High-Density Industrial Shielding: Equipped with an industrial structure shielding crystal head and zinc alloy housing, it provides superior EMI/RFI protection, maintaining signal integrity for critical Cat6A data transmission.
Extended Mechanical Durability: Designed for frequent use, the high-grade copper gold-plated plugs and robust internal structure support up to 500 insertion and unplugging cycles, far outperforming standard office connectors.
Integrated Cable Management: The connector includes a buckling/integrated protective sheath and line management pipe, offering excellent strain relief and protecting Ethernet cables from mechanical fatigue.
Optimized Wiring Compatibility: Supporting 22AWG and 24-26AWG wires, Shenzhen Sta Electronic provides versatile solutions with wiring ranges from 5.0mm up to 9.0mm to fit various industrial cable specifications.

Product Uses

Industrial Profinet Networks: The preferred piercing Profinet connector for factory automation systems requiring shielded, high-reliability Ethernet links between controllers and sensors.
WLAN Infrastructure Setup: Ideal for WLAN RJ45 network connections within indoor industrial cabinets and control rooms where reliable data throughput is essential.
Panel Mount Receptacle Integration: A robust choice for industrial panel mount RJ45 ports, providing a high-durability interface for external diagnostic and communication equipment.
High-Speed Data Centers: Supports Cat6A network infrastructure, utilizing gold-plated pins for ultra-low resistance in server racks and high-density switching environments.
Field Communication Repairs: The metal RJ45 plug allows for immediate on-site cable assembly and repairs without the need for complex crimping kits.

FAQ

Q1: What does "Crimp-free" mean for this RJ45 connector?

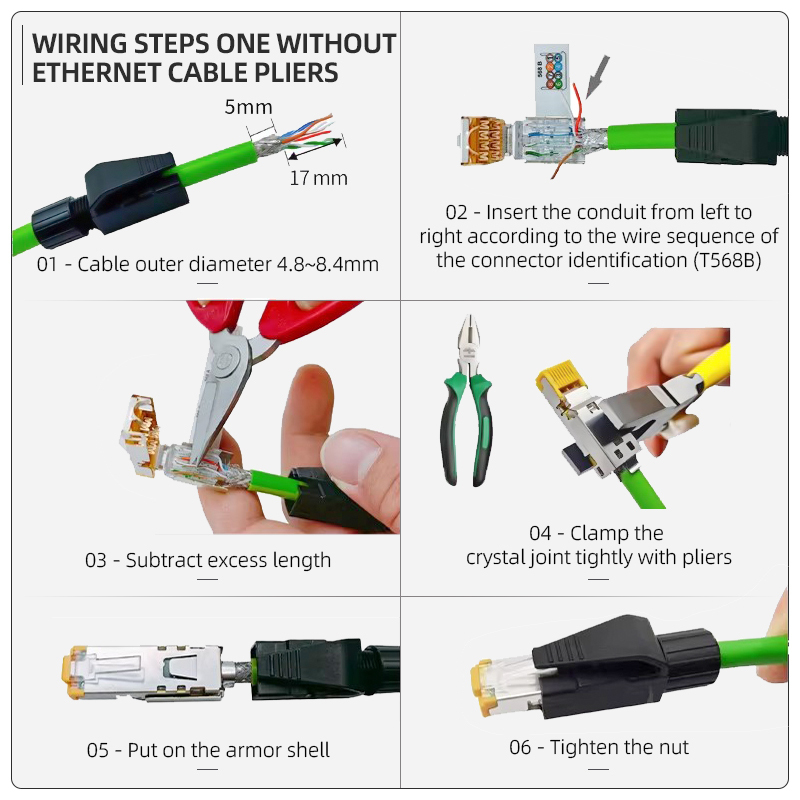

A1: Our crimp-free RJ45 connector uses a piercing mechanism that eliminates the need for a crimping tool. You simply place the wires in the guide and close the connector to establish a secure connection.
Q2: Is this connector suitable for high-interference environments?
A2: Yes, Shenzhen Sta Electronic designs these with an industrial shielding structure and zinc alloy components to effectively block electromagnetic interference.
Q3: Does this product have a waterproof rating?
A3: This specific RJ45 series is designed for indoor industrial use and does not have an IP67/IP68 rating. For outdoor waterproof requirements, please consult our other product lines.
Q4: How many times can I plug and unplug this connector?
A4: Thanks to the high-quality copper gold-plated pins, this connector is rated for a mechanical life of at least 500 cycles.
